Transformers
Fabricate and Repair
*The copper windings are completely varnished between layers of fibre-glass and insulation materials
| Description | |
|---|---|
| Transformer Type | Single Phase Transformer, Three Phase Transformer, Step-up Transformer, Step-down Transformer, Isolation Transformer |
| Ambient Temperature | Maximum range at 40°C |
| Insulation Class | Class F & Class H |
| Air-cooled Transformer with Ventilated Case | Dry type Class ‘F’ insulated naturally or fan blown air-cooled transformer with ventilated case |
| Optional | * Optional designs are catered upon request |

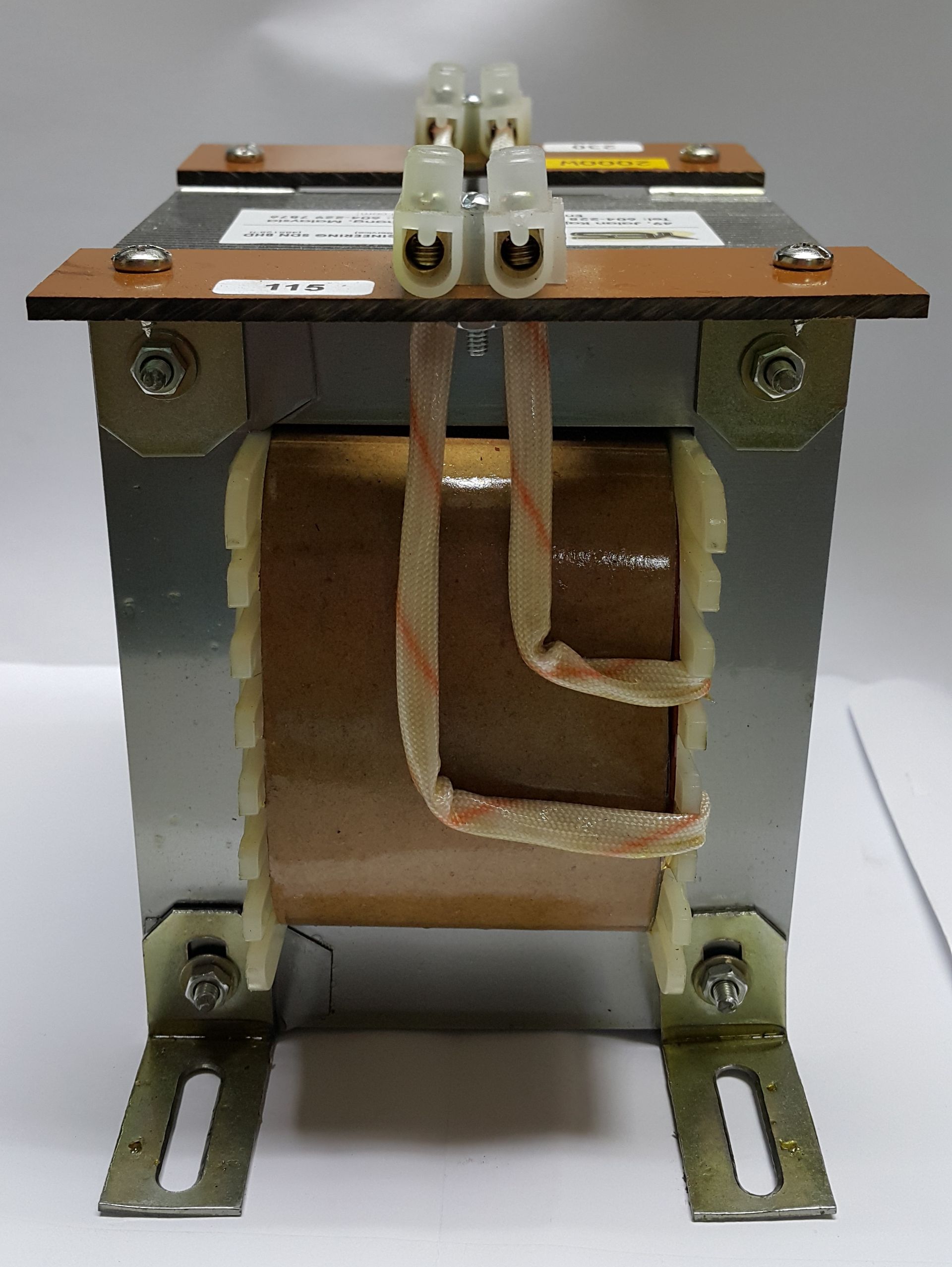

Single Phase Transformer
| Description | |
|---|---|
| Capacity | From 10VA and above |
| Primary Volt | 100V-480V |
| Secondary Volt | 12V-480V |
| Silicon Steel | High quality Silicon steel from Japan |
| Copper Wire | Polyester 200 Dual Coat Enamel Polyesterimide Round Wire – 200°C, Fibre-glass copper wire |

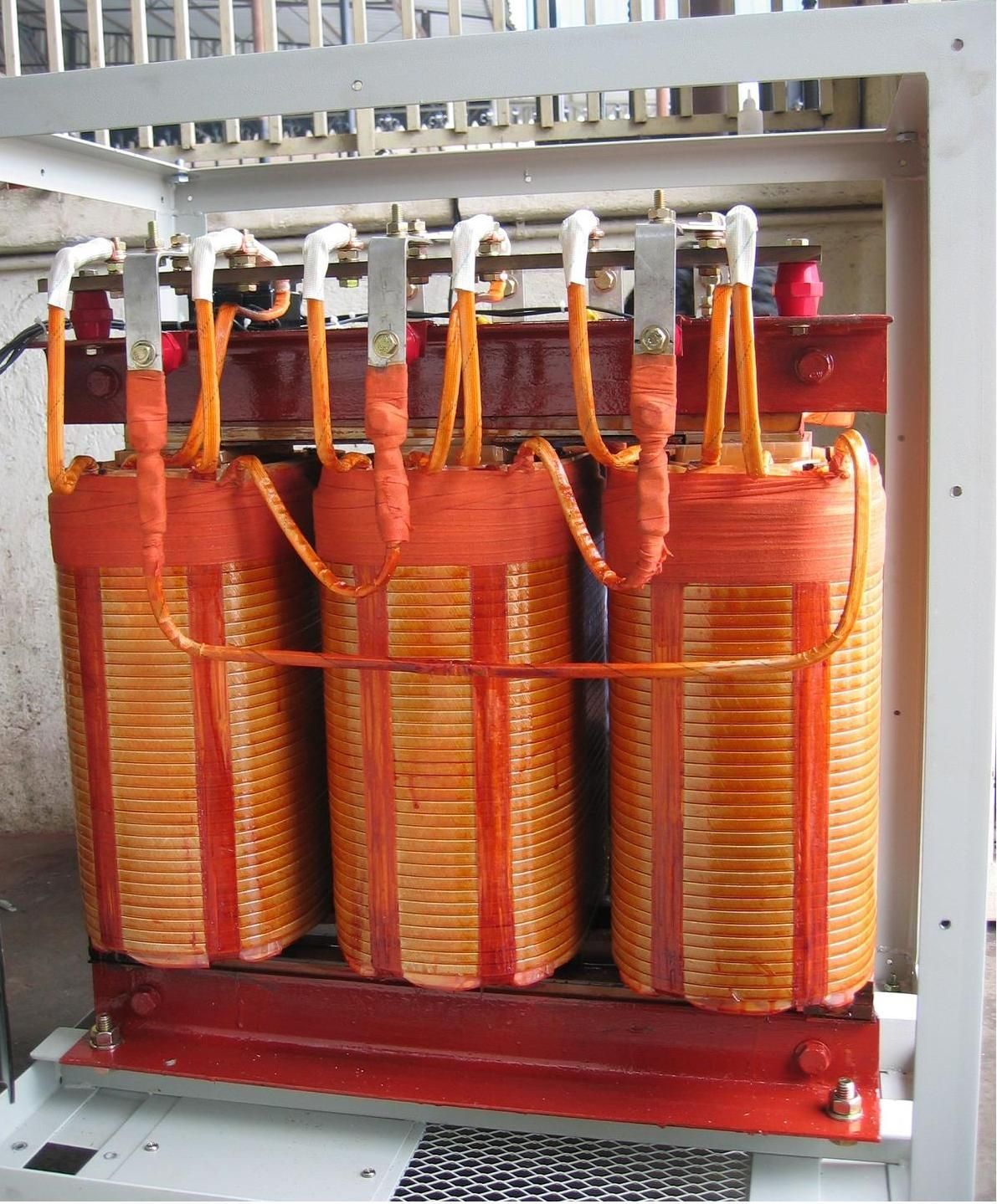

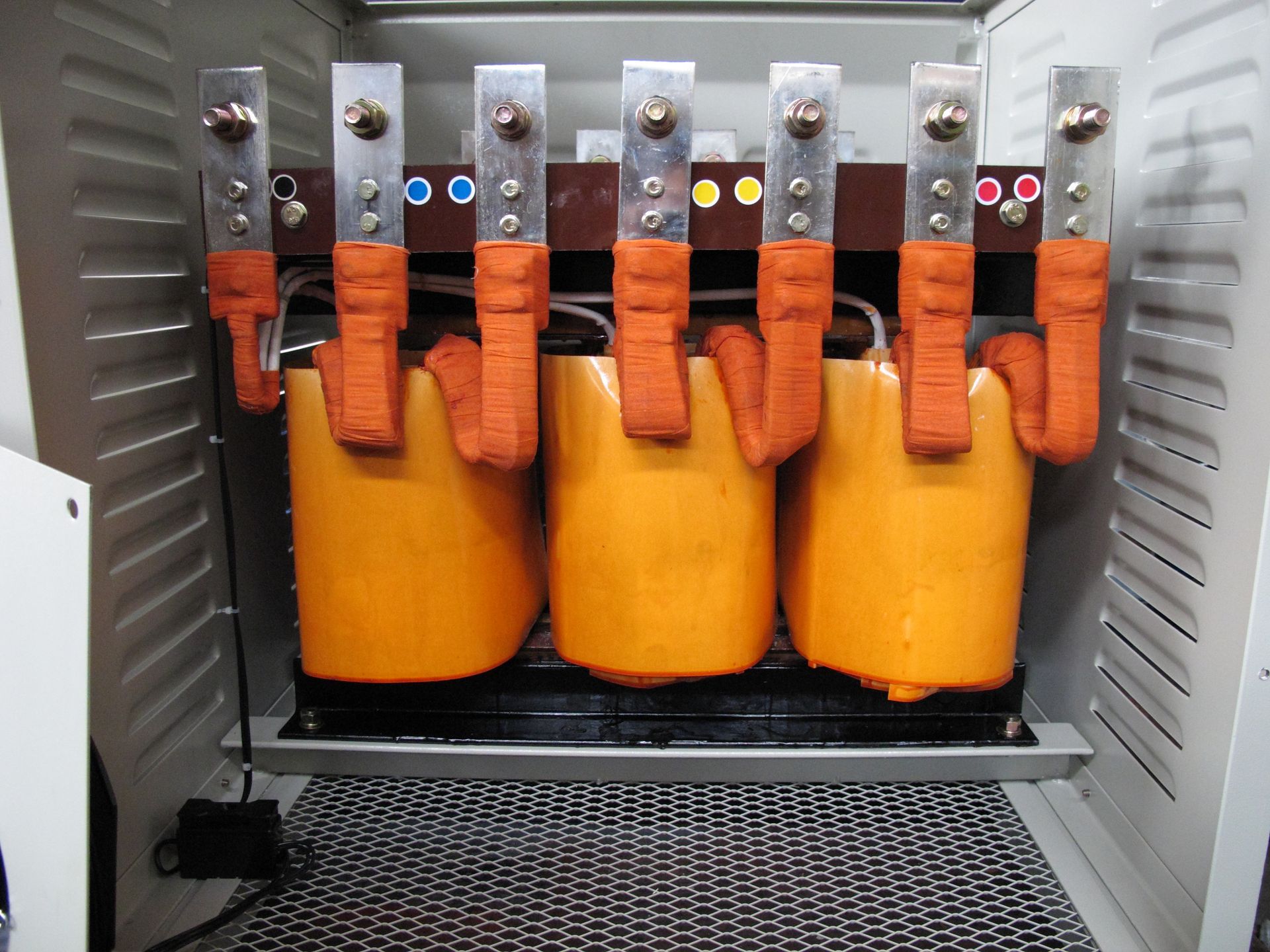

Three Phase Transformer
| Description | |
|---|---|
| Capacity | 50VA – 600KVA** |
| Primary Volt | 200V-480V 50Hz |
| Secondary Volt | 100V-480V |
| Silicon Steel | High quality Silicon steel from Japan |
| Copper Wire | Polyester 200 Dual Coat Enamel Polyesterimide Round Wire – 200°C, Fibre-glass copper wire |
| Vector Group | Delta/Star |
*Transformer is tailor-made to your specific requirement
** For further enquiry, please call in to find out more
